Thông tin chi tiết sản phẩm:
|
| buồng sấy: | Thiết kế quy trình sấy nhà máy gạch tự động: Máy sấy hầm một lớp với hệ thống xếp/dỡ giá đỡ | Thiết bị máy sấy: | hệ thống thiết bị xếp dỡ gạch |
|---|---|---|---|
| Năng lực sản xuất sấy: | 99% | Thời gian khô: | 22~26 giờ |
| Chỉ số tiêu thụ nhiệt: | 180Kal/kg | Sản lượng hàng ngày: | 400 tấn |

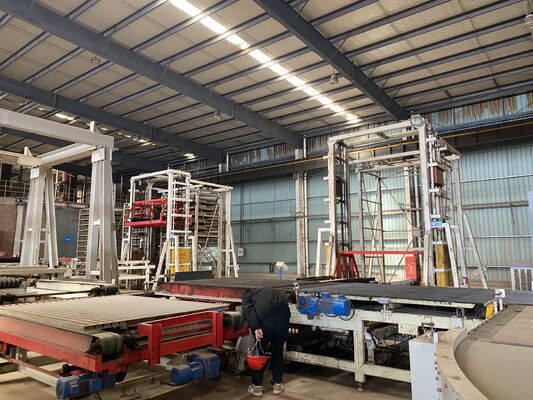

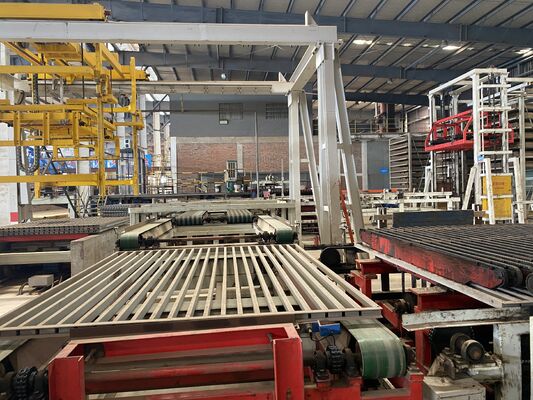

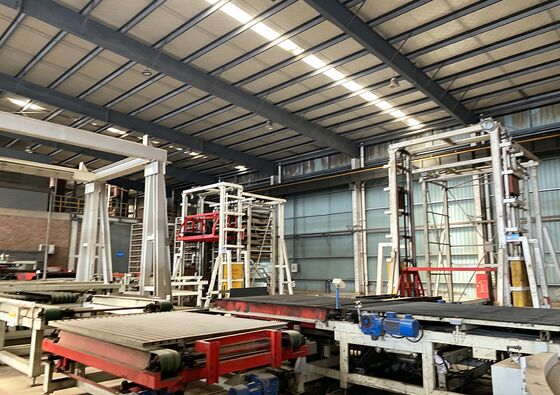

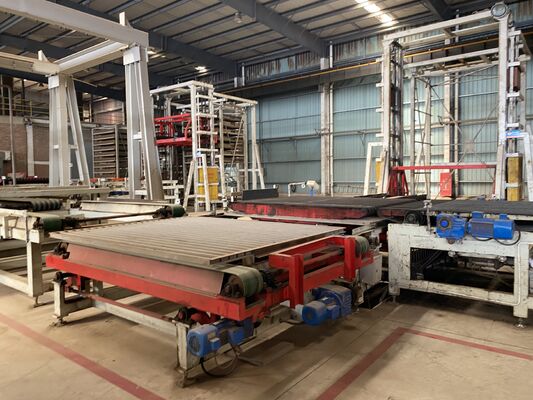

Automated Brick Plant Drying Process Design: Single-Layer Tunnel Dryer with Rack Loading/Unloading System
| No. | Item | Parameter |
|---|---|---|
| 1 | Total length | 83.65 m |
| 2 | Carts contained in the dryer | 138 pcs |
| 3 | Inner width | 22.125 m |
| 4 | Inner height | 5.315 m |
| 5 | Loading capacity per cart | 600 pcs (150×200×300 mm hollow bricks) |
| 6 | Air-supplying temperature | 110～130 ℃ |
| 7 | Air-exhausting temperature | 28 ℃ |
| 8 | Moist-releasing humidity | 75~90 % |
| 9 | Drying yield | 99 % |
| 10 | Drying cycle | 22~26 hours |
| 11 | Daily output | 400 tons |
| 12 | Thermal consumption index | 180 kcal/kg |
| 13 | Drying cart specification | 2920×2600×4795 mm |
| 14 | Drying chamber outer dimension (L×W×H) | 83.65×22.625×5.565 m |
Brick Factory Tunnel Drying Line with Auto Loading & Unloading Equipment
BBT is a professional provider of full automatic clay brick making production lines and related equipment.
Our main products include:
TCNL series full steel chain box feeder
TWGD series double shaft mixer
GS series roller crusher
TRA series double tooth roller crusher
TWJH series front grid extruding mixer
TWPM series wet pan mill
QTQG series cutter
EV series vacuum extruder
Robot setting machine
Spare parts for brick making machinery
We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
